Fit 16" Misfit BMX Bike

With young riders pushing the level of riding, smaller bikes need to keep up.

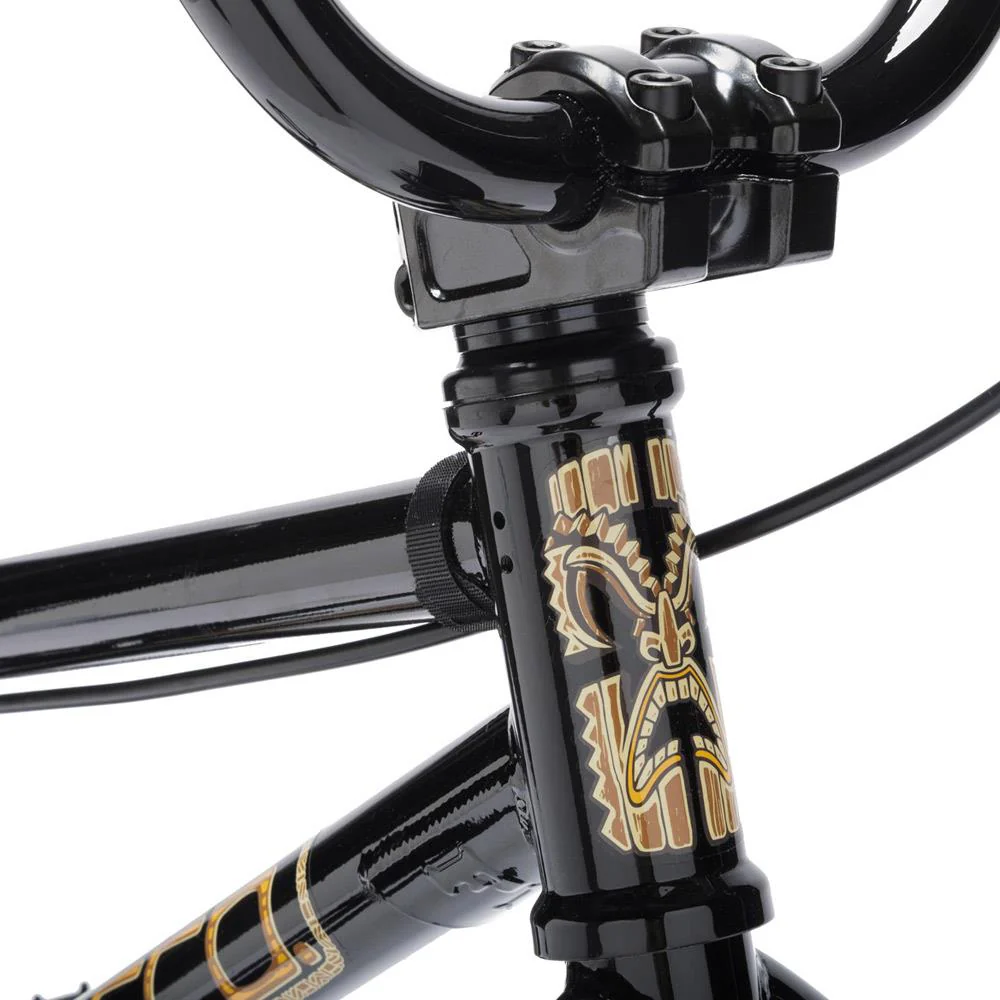

The Fit Misfit 16” is the smallest bike in their line up to feature a fully sealed Integrated Headset. Utilizing a CNC machined headtube, that's also drilled for thread-on Gyro tabs, the headset rests inside the head-tube rather than in press-in cups to avoid broken cups or the lower cup shifting when a fork is bent causing a tight spot in your headset.

Also drawing influence from its aftermarket counterpart Fit have lightened up the frame and fork for 2026 creating a bike as limitless as riders imaginations.

###section###

Product Specs

1. FRAME MATERIAL: Chromoly Top Tube & Down Tube
2. WHEEL SIZE: 16"
3. TOP TUBE LENGTH: 16.25"
4. CHAIN STAY LENGTH:
5. HEADTUBE ANGLE:
6. SEAT TUBE ANGLE:
7. FORKS: Chromoly Steerer Tube and Hi-Ten Legs
8. BARS:
   - MATERIAL: Steel
   - TYPE: 2-Piece
   - RISE: 7" Rise
   - WIDTH: 24" Width
9. STEM: Alloy Top Load
10. HEADSET: Integrated
11. BRAKE MOUNTS: Welded Mount
12. BRAKES: U-Brake
13. FRONT HUB: 10mm Loose Ball
14. FRONT RIM: Single Wall
15. REAR HUB: 10mm Sealed Cassette
16. REAR RIM: Single Wall
17. TYRES: 2.25"
18. SPROCKET: 24T
19. CRANKS:
    - MATERIAL: Chromoly
    - TYPE:
    - ARM LENGTH: 127mm
20. BB: 19mm Mid
21. PEDALS: Nylon/Fiberglass
22. SEAT: Combo Seat/Post
23. GEARING: 24/9
24. WEIGHT: TBC

###section###

Product Highlights

• Smaller 16" Wheels - The Perfect fit for for 5-8 years olds (3ft - 3ft 6 / 90cm - 105cm)
• Specifically designed for the smaller rider, just starting out in BMX
• Built strong and lightweight
• Includes sealed bearings
• Geometry designed with the smaller rider in mind
